| Basic Information | ||
|---|---|---|

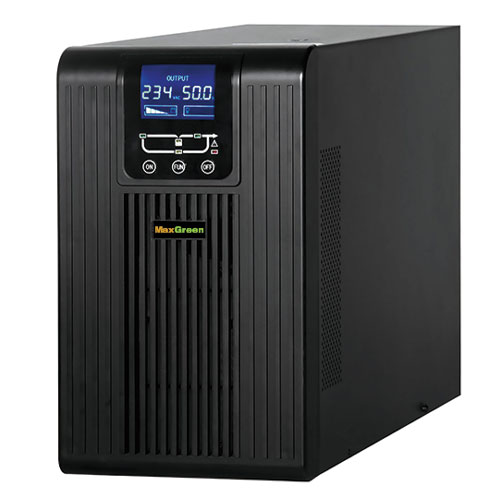

| Model | W3KL |
|
| Capacity | 3KVA | |
| Input Features | ||
| Nominal voltage (Vac) | 220/230 | |
| Voltage range (Vac) | 110VAC～290VAC | |
| Frequency (HZ) | 45～66 | |
| Phase | Single phase | |
| Power Factor | Full load ≥0.95 | |
| Battery voltage | 96 VDC | |
| Battery type | SMF-12V/External | |
| Output Features | ||
| Power Factor | 0.9 | |
| Voltage(V) | 220/230/240±1% | |
| Frequency (HZ) | 50/60±0.05% (battery mode) | |
| Transfer Time | 0 ms | |
| Efficiency | ≥93% | |
| Waveform | True Sine Wave, Linear Load THD<3%；Non-linear Load THD<5% | |
| Overload | 105%~129% for 60s；130%~150% for 30s；Above 150% for 300ms | |
| Crest Factor | 3:1 | |
| Output socket | EU/IEC/UK (optional) | |
| Others | ||
| DC start | Yes | |
| Backup time | As per customer requirement | |
| Communication function | RS232(USB/dry contact are optional) |
|
| SNMP (optional) | Can be network monitored by SNMP adapter |
|
| Display | LED display UPS work status, LCD display UPS work parameters |
|
| Noise (dB) | <55(within 1 meter) |
|
| Parallel function | No | |
| Test Standards | IEC 62040-2, IEC 62040-3, EN 62040-1, EN 62040-2 |
|
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |
| Protection | Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |
