| Basic Information | ||
|---|---|---|

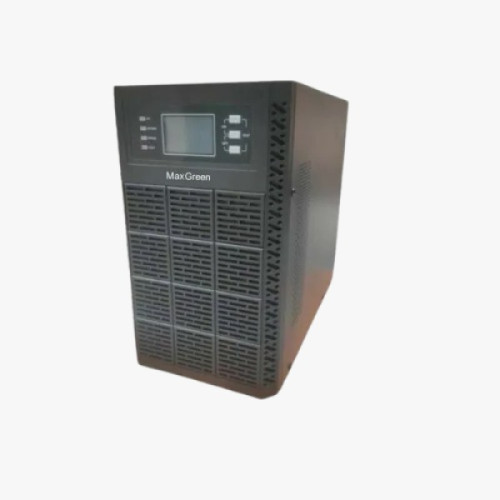

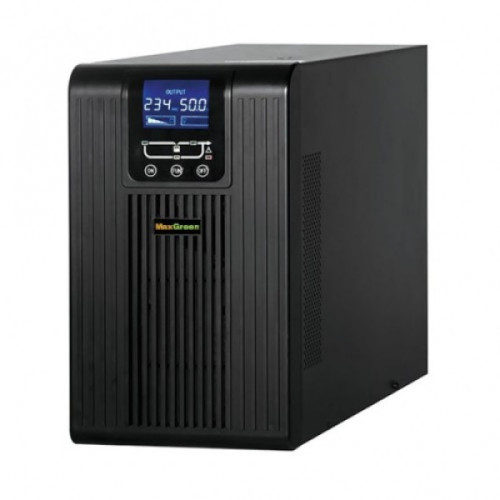

| Model | MGO-W10KLE | |
| Capacity | 10 kVA | |
| Input Features | ||
| Voltage range (Vac) | 120VAC～288VAC | |
| Frequency (HZ) | 45～66 | |
| Phase | Single phase | |
| Power Factor | Full load ≥0.98 | |
| Battery voltage | 192-240 VDC | |
| Output Features | ||
| Power Factor | 1.0 | |
| Voltage(V) | 220/230/240±1% | |
| Frequency (HZ) | 50/60±0.05%（battery mode | |
| Transfer Time | 0 ms | |
| Efficiency | ≥94% | |
| Waveform | Sine Wave, Linear Load THD<3%；Non-linear Load THD<5% | |
| Overload | 105%~129% full load keeps 60s；130%~150% load keep 30s；Above 150% load keep 300ms | |
| Rated power | 10 KVA/10 KW | |
| Crest Factor | >3:1 | |
| Output socket | Terminal block | |
| Others | ||
| DC start | Yes | |
| Backup time | Long backup depends on demand | |
| Communication function | RS232(USB/dry contact are optional) | |
| Display | LED display UPS work status, LCD display UPS work parameters | |
| Noise (dB) | <55 (within 1 meter) | |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |
| Protection | Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over-temperature protection | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |
